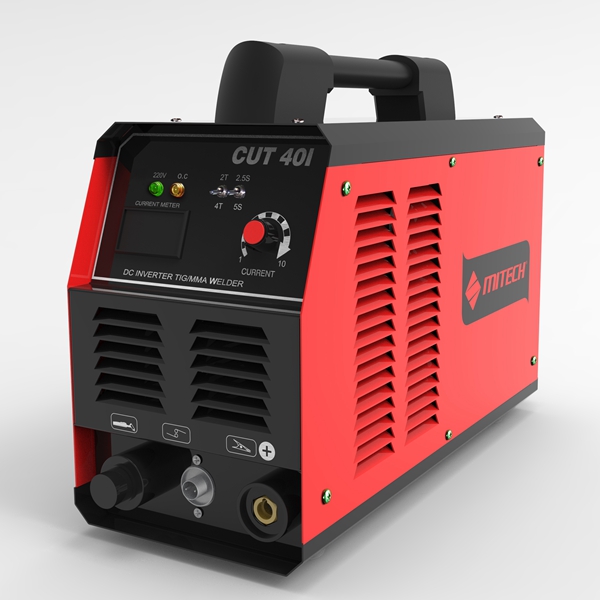

INVERTER AIR PLASMA CUTTING MACHINE
【Model 】:CUT40
【Brief 】:

Advanced design, high inverter frequency, high duty cycle, low energy consumption.

Portable with light weight in shop or at job site

【Series】:PLASMA CUTTER
Close
    Feedback Form:
    E-mail:     *
    Message:     *



Advanced design, high inverter frequency, high duty cycle, low energy consumption.

Portable with light weight in shop or at job site

Much more economical and more efficient than flame cutting machine by using the compressed air as cutting source.

Narrow cutting seam, smooth appearance, less transmutation

Widely used in mild steel, stainless steel, titanium, aluminum cutting and so on.

Compatible with network or generator use

Auto-protection against over voltage and over heat



Model

CUT40

Input power voltageV

AC220V±15%,1PH

Input voltage frequencyHZ

50/60

Rated input power capacityKVA

4.9

No-load voltageV

233

Output current rangeA

20-40

Duty cycle%

60

Arc-striking

Touch

Air pressureM Pa

0.4

Cutting Thicknessmm

12

WeightKG

9

Dimensionmm

356×153×225



Metal workshops

Construction industry
