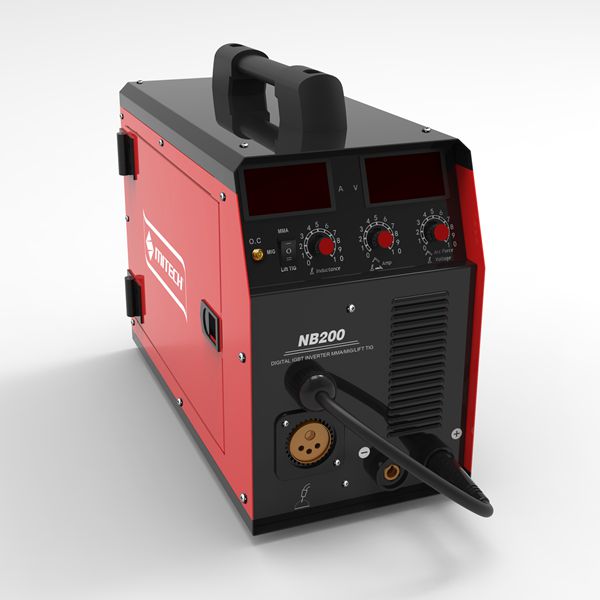

MCU IGBT MIG/MMA/LIFT TIG WELDING MACHINE
【Model 】:NB200
【Brief 】:

MIG/MMA/Lift TIG  3 in 1

Smart design with light weight (10KG) but higher duty cycle (60%).

Microprocessor control,less spatter,easy to operate

Inductance adjustable,

Better heat dissipation with double fans design

【Series】:MIG(GMAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Portable, function of MMA ,MIG and lift TIG, gas/no gas selection,workable with 1KG and 5KGS spools.

Smart design with light weight(10KG) but higher duty cycle(60%).
Deep molten puddle, less spatter, nice welding seam.
Outstanding stability and performance
Inductance adjustable, better heat dissipation with double fans design



Model

NB200



MMA

MIG

Input power voltageV

AC220V±15%  1PH

Rated input power capacity (KVA)

5.4

6

Frequency HZ

50/60

Rated input currentA

24.5

27

No-load voltageV

60

Output current rangeA

40-160

40-200

No-load consumption (W)

                    60

Duty cycle%

 60

Efficiency%

85

Power factor

0.93

Insulation class

F

Protection class

IP21S

Weightkg

10

Dimensionmm

420x200x300

Metal workshops

Repair and maintenance
