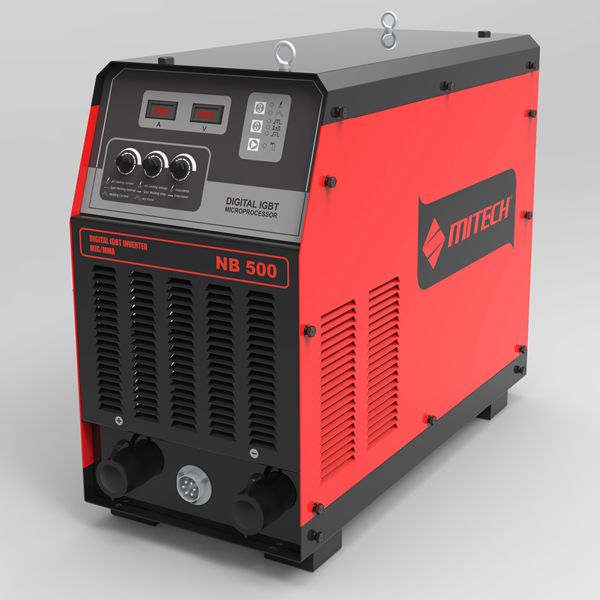

DIGITAL INVERTER MIG/MMA WELDING MACHINE
【Model 】:NB500
【Brief 】:

Compact design

Microprocessor control

Comprehensive protecting function

The unique air duct design

Unitization design

【Series】:MIG(GMAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Compact design: trolley,water tank,power source can be selected according to applications.

Microprocessor control: simple operation,more perfect welding performance.

Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.

The unique air duct design: failure rate greatly reduced,extending the service life of the machine.

Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.



Model

NB500

Parameter

MMA

MIG





Adjustment range

Preset

Input power voltage (V)

AC380V±15% 3PH

Input voltage frequency (HZ)

50/60

Rated input power capacity (KVA)

23.5

23



Output current range (A)

40-500

40-500



No-load voltage (V)

77



Pre-flow(0.1S)



0-20

0

Post-gas(0.1S)



0-20

0

Burn back time(0.1S)



0-20

0

Duty cycle (%)

60



No-load consumption (W)

60



Weight (KG)

41



Dimension (mm)

622×280×480



Repair and maintenance

Chemical and process industry

Installation and set-up

Shipyard and offshore industry

Production welding
