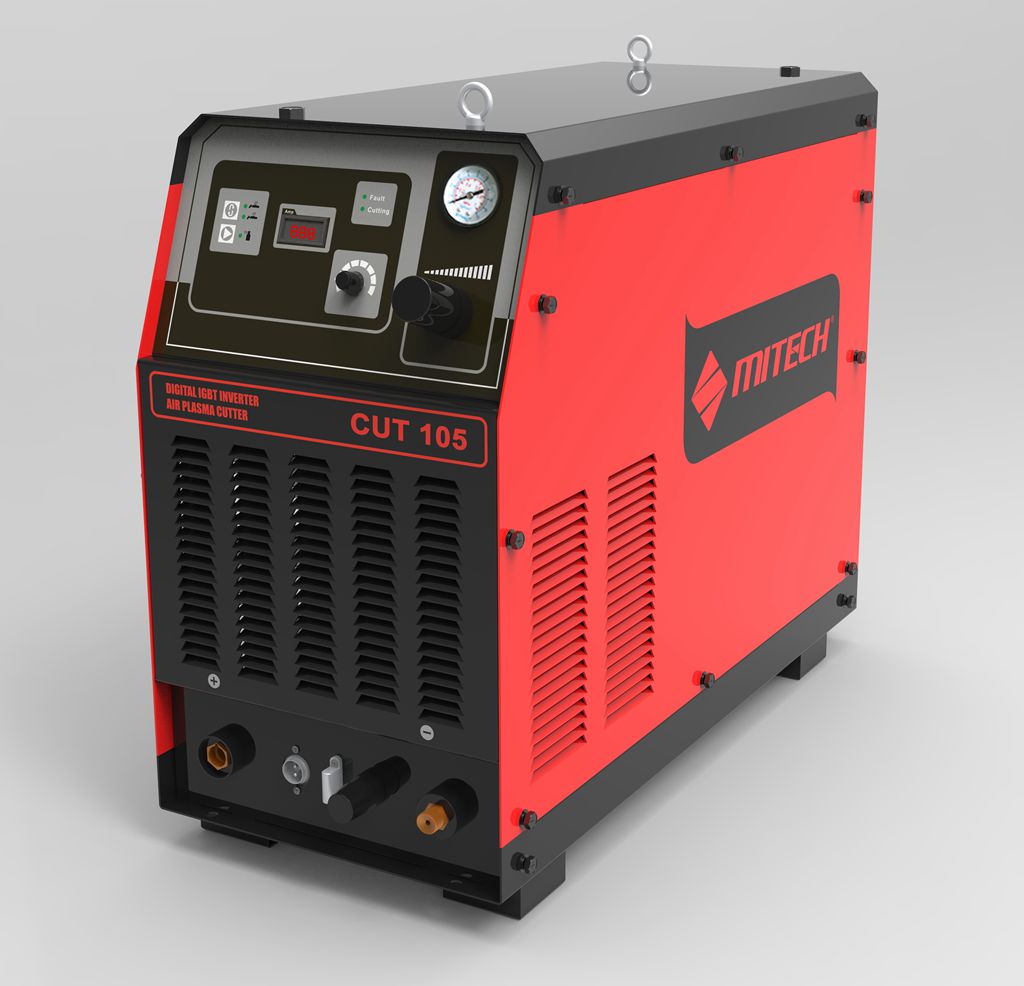

DIGITAL INVERTER AIR PLASMA CUTTING MACHINE
【Model 】:CUT100
【Brief 】:

Compact design

Microprocessor control

Comprehensive protecting function

The unique air duct design

Unitization design

【Series】:PLASMA CUTTER
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Compact design: trolley,water tank,power source can be selected according to applications.

Microprocessor control: simple operation,more perfect welding performance.

Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.

The unique air duct design: failure rate greatly reduced,extending the service life of the machine.

Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.



Model

CUT100

Adjustment range

Preset

Input power voltageV

AC380V±15% 3PH

Input voltage frequencyHZ

50/60

Rated input power capacityKVA

14.7

No-load voltageV

285

Output current rangeA

5-100

Pre-flow(S)

0.1-5

1

Post-gas(S)

0-30

5

Recommended cut capacity(mm)

30

Severance capacity(mm)

42

Motor generator requirements for full arc stretch at full outputKW

30

Duty cycle%

60

WeightKG

35

Dimensionmm

622×280×480



Metal workshops

Construction industry
