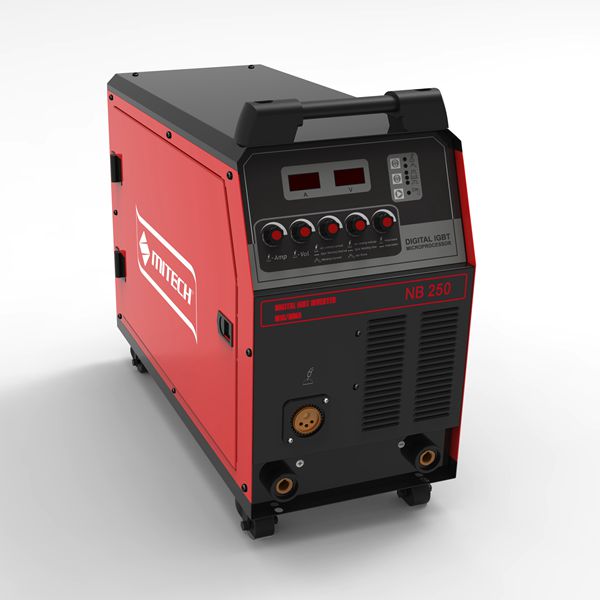

MCU IGBT MIG/MMA WELDING MACHINE
【Model 】:NB250
【Brief 】:

With arc ending& spot welding, deep molten puddle, less spatter.
Outstanding stability and performance

【Series】:MIG(GMAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Portable, function of MMA ,MIG ,much compact design for 300mm coil which can be well protected internally.
Much compact design with light weight but higher duty cycle(60%).
With arc ending& spot welding, deep molten puddle, less spatter.
Outstanding stability and performance

Unique design with double fans at the rear panel for better dissipation

 Model

NB250



 MIG

 MMA

 Input power voltage(V)  AC220V±15%  1PH
 Input voltage frequency(HZ)

50/60

 Rated input power capacity (KVA)

 8.4

 9.5

 Rated input current(A)

 38

 43

 Output current range(A)

 20-250

 20-250

 No-load voltage(V)

52

 Duty cycle(%)

60

 No-load consumption (W)

60

 Efficiency(%)

85

 Power factor

 0.93

 Insulation class

 F

 Protection class

 IP21S

 Weight(kg)

 20

 Dimension(mm)

 622x280x450

Metal workshops

Repair and maintenance
