MCU IGBT MIG/MMA WELDING MACHINE
【Model 】:NB300
【Brief 】:

Much compact design with light weight but higher duty cycle(60%).
With arc ending& spot welding, deep molten puddle, less spatter.

【Series】:MIG(GMAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Portable, function of MMA ,MIG ,much compact design for 300mm coil which can be well protected internally.
Much compact design with light weight but higher duty cycle(60%).
With arc ending& spot welding, deep molten puddle, less spatter.
Outstanding stability and performance.

Unique design with double fans at the rear panel for better dissipation

   Model   NB300
Item MIG MMA
Input Voltage AC380V±15% 3ph
Input voltage frequency(HZ)                                 50/60
Rated input power capacity(KVA)          11 10.5
Rated output volatage(V) 29 30.8
Rated input current(A)                                             16.7 16
Output current range(A)                                20-300 20-270
No-load voltage(V) 54
Duty cycle(%) 60
No-load consumption (W) 60
Efficiency% 85
Power factor 0.93
Protection class F
Spool size(mm) 300
Wire feeding speed 18m/min
Weight(KG) 21
Diamension(mm) 622x280x450

Metal workshops

Repair and maintenance

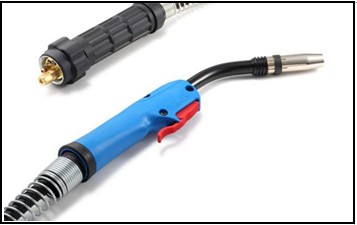

1.24KD torch with 3m cable

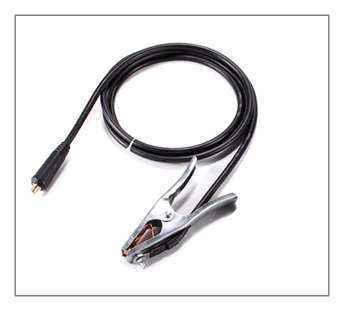

2.300A Earth clamp with 2m cable 25mm2

3.Pallet
