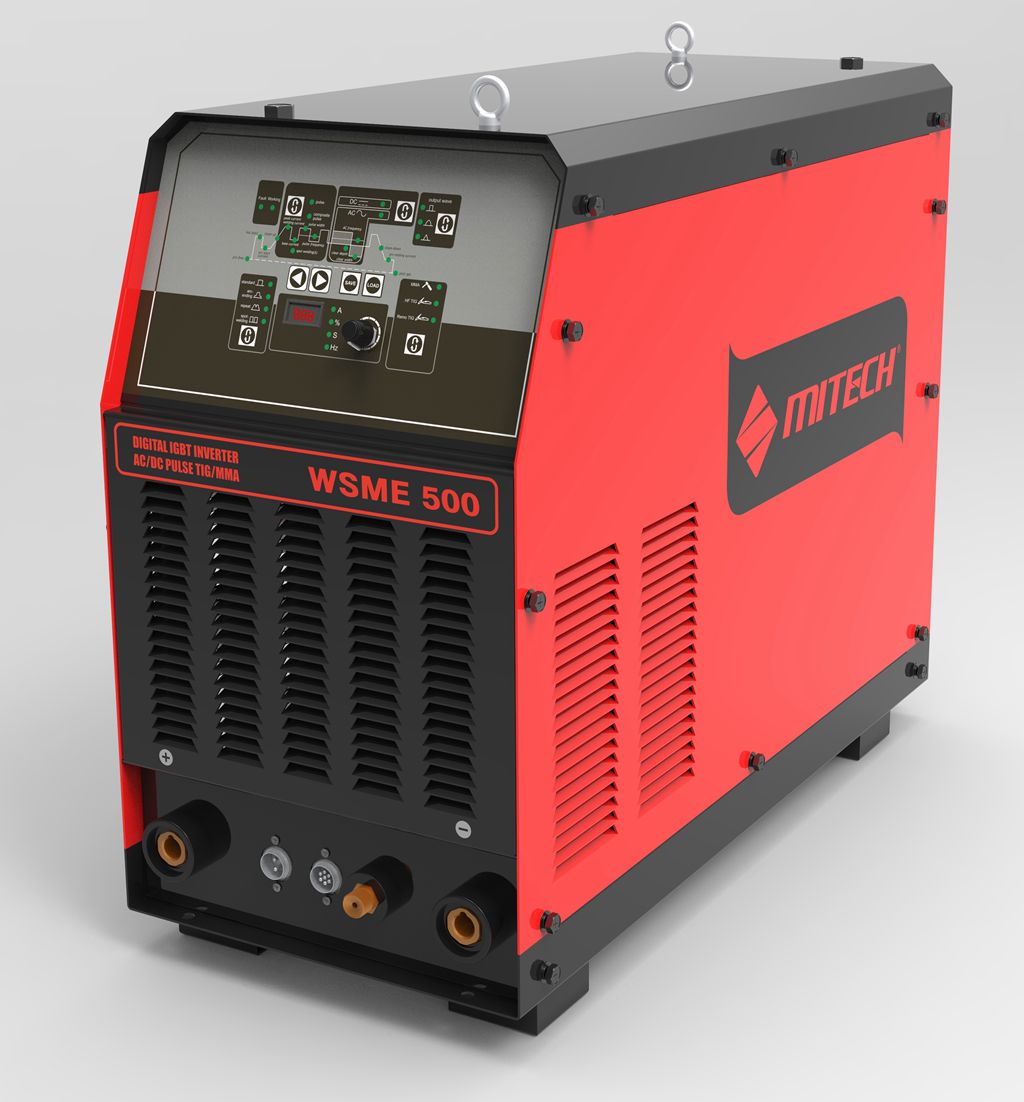

DIGITAL INVERTER AC/DC TIG/MMA/PULSE WELDING MACHINE
【Model 】:WSME500
【Brief 】:

Compact design

Microprocessor control

Comprehensive protecting function

The unique air duct design

Unitization design

【Series】:TIG(GTAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Compact design: trolley,water tank,power source can be selected according to applications.

Microprocessor control: simple operation,more perfect welding performance.

Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.

The unique air duct design: failure rate greatly reduced,extending the service life of the machine.

Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.

Model

 WSME500



 MMA

 TIG



 Adjustment range

 Preset

 Input power voltage(V)

 AC380V±15% 3PH

 Input voltage frequency(HZ)

 50/60

 Rated input power capacity(KVA)

 23.5

19


 No-load voltage(V)

77

 77


 Output current range(A)

40-500

 5-500


 Constant current(A)

 5-500


 Pre-flow(S)

 0-10

 0.1

 Hot start current(A)

 5-500

 50

 Arc-striking current(A)

 5-500

40

 Up-slope(S)

 0-10

 5

 Spot welding(S)

 0-10

 3

 Base current(A)

 5-500

 10

 Peak current(A)

 5-500

 150

 Pulse width(%)

 10-90

 50

 Pulse frequency(HZ)

 0.1-20

 5

 Clear width(%)

 10-90

 30

 Clear depth (%)

 -50~+50

 AC frequency(HZ)

 20-200

 80

 Down-slope(S)

 0-10

 5

 Arc-ending current(A)

 5-500

 20

 Post-gas (S)

 0-10

 5

 Duty cycle(%)

60%


 Weight(KG)

45

 Dimension(mm)

 622×280×480



 Model

 Water tank

 Power Voltage(V)

 AC380V±15% 50HZ

 Phase

 1PH

 Heat dissipation capacity

 1.5KW(1L/MIN)

 Power capacity of motor

 370W

 Max pressure/Lift

 0.3MPa/35m

 Water volume

 7L

 Operation temperature

 -20℃~60℃

 Weight

 15KG

 Dimension(mm)

 622×305×270





Metal fabrication workshops

Repair and maintenance

Chemical and process industry
