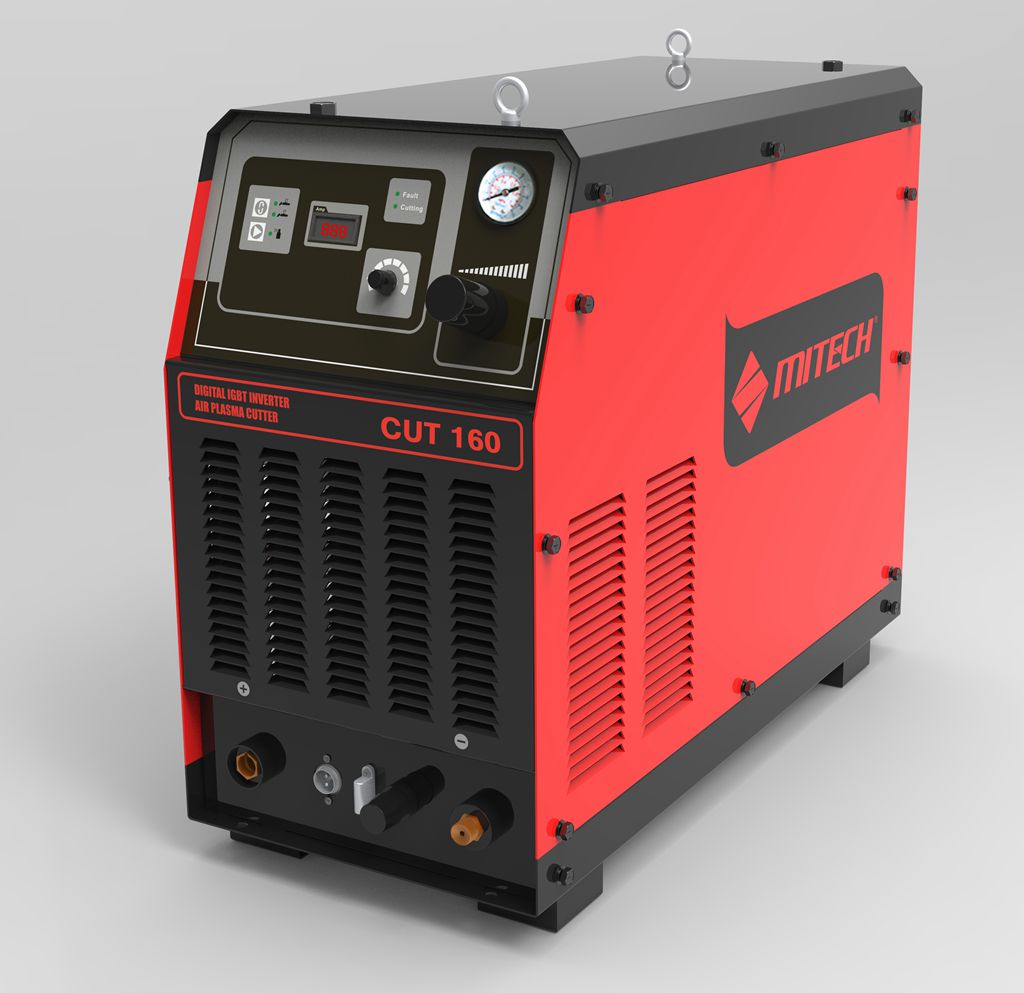

DIGITAL INVERTER AIR PLASMA CUTTING MACHINE
【Model 】:CUT160
【Brief 】:

Compact design

Microprocessor control

Comprehensive protecting function

The unique air duct design

Unitization design

【Series】:PLASMA CUTTER
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Compact design: trolley,water tank,power source can be selected according to applications.

Microprocessor control: simple operation,more perfect welding performance.

Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.

The unique air duct design: failure rate greatly reduced,extending the service life of the machine.

Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.

 Model

 CUT160



  Adjustment range

 Preset

 Input power voltage(V)

 AC380V±15% 3PH

 Input voltage frequency(HZ)

 50/60

 Rated input power capacity(KVA)

29.2


 No-load voltage(V)

307


 Output current range(A)

5-160


 Pre-flow(S)

0.1-5

 0.2

 Post-gas(S)

0-30

 5

 Recommended cut capacity(mm)

45


 Severance capacity(mm)

60


 Motor generator requirements for full arc stretch at full output(KW)

 60


 Duty cycle(%)

60


 Weight(KG)

45

 Dimension(mm)

 622×280×480

Metal workshops

Construction industry
