Product DetailLocation:Home > Products > Product Detail

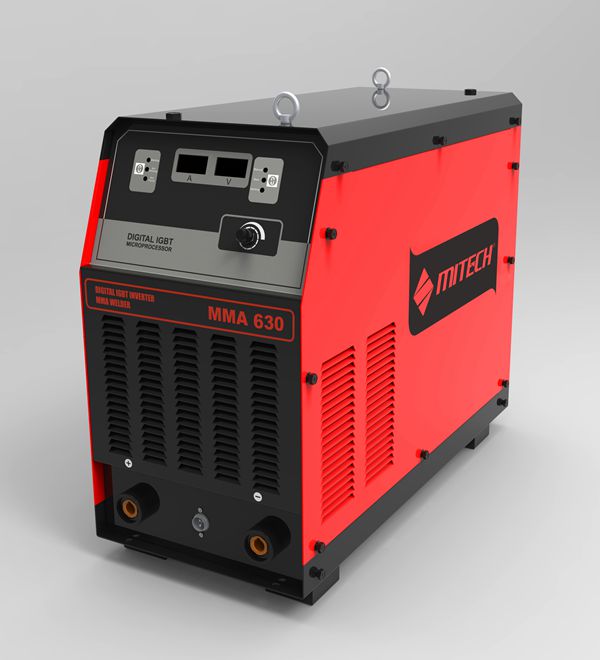

INVERTER DC MMA WELDING MACHINE
【Model 】:MMA630
【Brief 】:

Arc gouge with the carbon electrode.
Smooth arc - Easily weld with mild steel, low hydrogen, stainless steel and hardfacing electrodes.

【Series】:MMA(SMAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


1.Designed for heavy duty stick welding needs. Whether you are using  cellulosic, low hydrogen, stainless steel or hardfacing electrodes,it can produces a smooth, quality arc for consistent results day-in and day-out.
2.Substantial amperage ranges at 20-630 amps.
3.Easy to operate - Microprocessor panel control makes procedure setting simple and easy.
4.Arc gouge with the carbon electrode.
5.Smooth arc - Easily weld with mild steel, low hydrogen, stainless steel and hardfacing electrodes.

Model  MMA630
Input power voltage(V)  AC380V±15%   3PH
Rated input power capacity(KVA)  36
Input voltage frequency(HZ)  50/60
Rated input current(A)  54.7
No-load voltage(V)  77
Output current range(A  20-630
Rated output voltage (V)  45.2
ARC Force(A)  20-150
Duty cycle (%)  60
Insulation class  F
Protection class  IP21S
Diameter of rod  1.6-6.0
Power Factor 0.93
Effeciency(%) 85
Weight(KG) 45
Dimension(mm)  622*280*480

Metal workshops

Construction industry

Agriculture

Repair and maintenance
