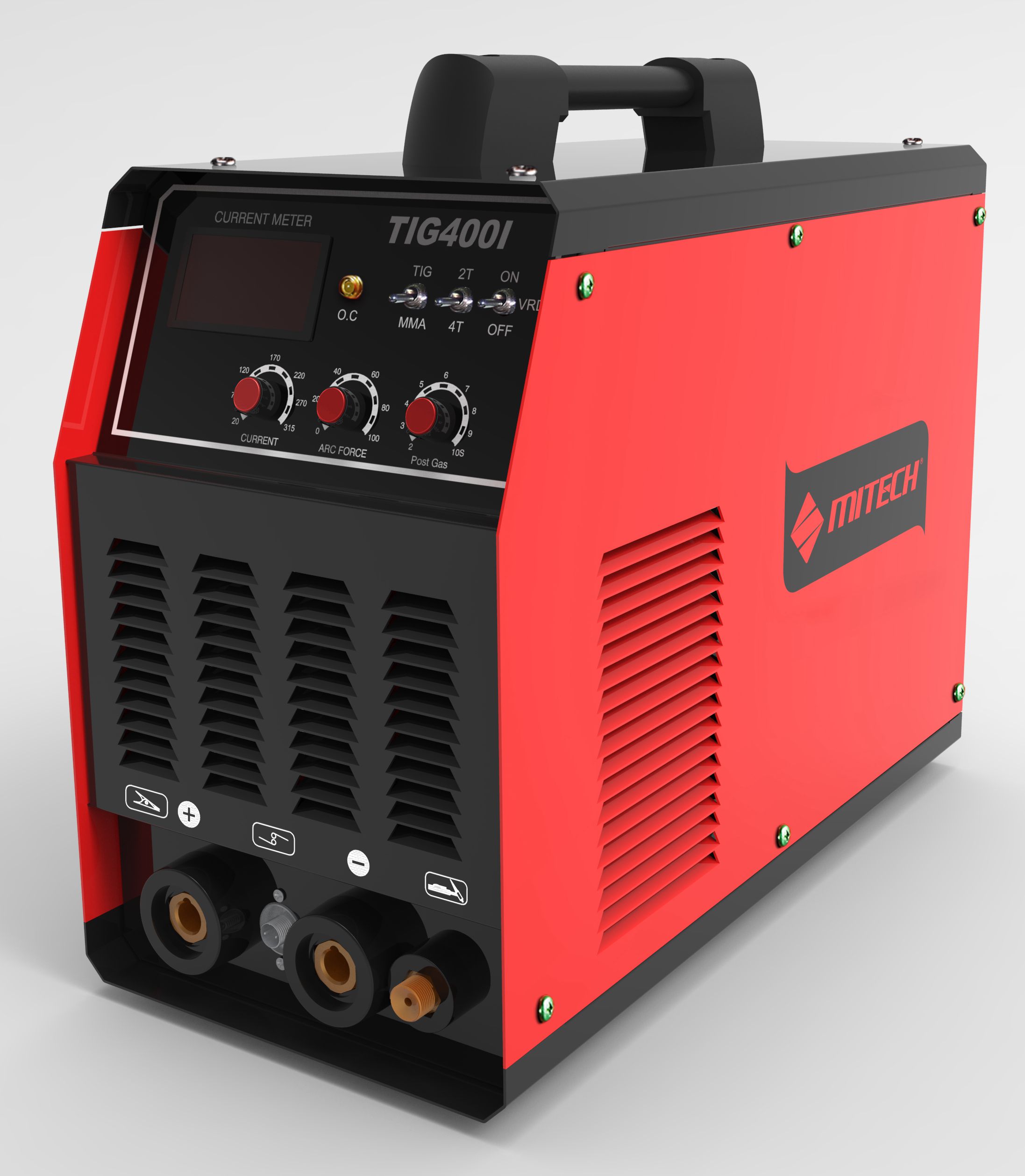

INVERTER DC TIG / MMA WELDING MACHINE
【Model 】:TIG400I
【Brief 】:

Portable with light weight in shop or at job site

Two welding modes, TIG and MMA

【Series】:TIG(GTAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *



Portable with light weight in shop or at job site

Two welding modes, TIG and MMA

Easy arc-striking and stable current, fast dynamic reaction

Outstanding arc stability and welding performance

Compatible with network or generator use

Auto-protection against over voltage and over heat

Model

 TIG400I



 MMA

 TIG

 Input power voltageV

 AC380V+15%  3PH

Rated input power capacity(KVA)

 27.8

 20

Rated input Current(A)

18.3

 No-load voltage(V)

 67

 Output current range(A)

 20-315

 20-315

 Rated output voltage

 32.6

 22.6

 Arc force adjustment(A)

 0-100


 Duty cycle(%)

 60

 No-load consumption

 60

 Efficiency(%)

 85

 Power factor

 0.93

 Insulation class

 F

 Protection class

 IP21S

 Weight(KG)

 14.5

 Diamension(mm)

 450*220*345







Metal workshops

Repair and maintenance

Installation and set-up

Thin sheet metal fabrication workshops

Chemical and process industry
