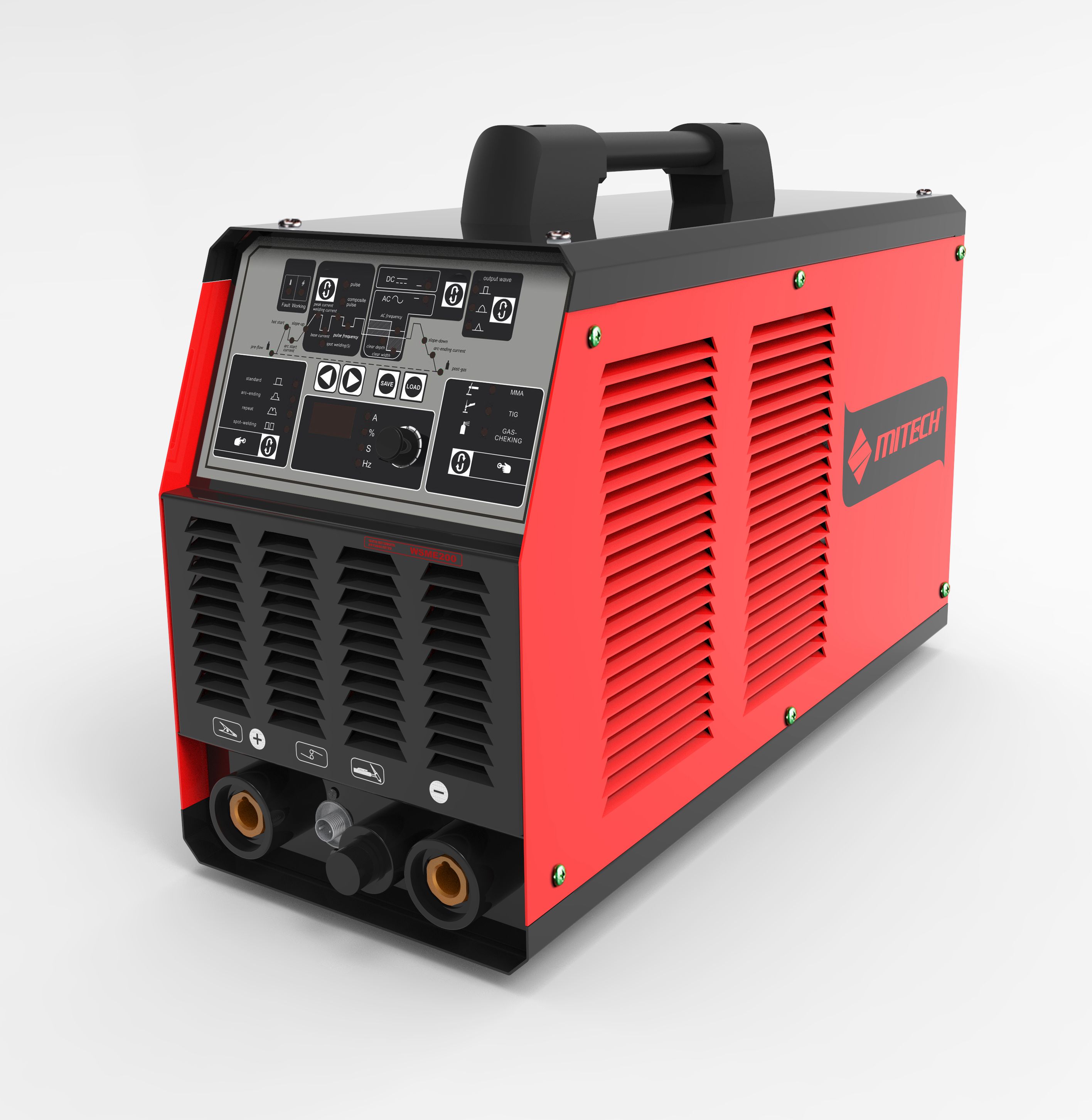

DIGITAL INVERTER AC/DC TIG/MMA/PULSE WELDING MACHINE
【Model 】:WSME200
【Brief 】:

Compact design

Microprocessor control

Comprehensive protecting function



【Series】:TIG(GTAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Compact design: trolley,water tank,power source can be selected according to applications.

Microprocessor control: simple operation,more perfect welding performance.

Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.

The unique air duct design: failure rate greatly reduced,extending the service life of the machine.

Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.

Model WSME200 WSME315
Item MMA TIG MMA TIG
Input Voltage AC220V+15%    1PH AC380V±15%         3PH
Rated input power capacity(KVA)  7 4.6 13 9
Rated input current (A) 31.8 20.9
No-load voltage(V) 60 67 67
Output current range(A) 40-200 5-200 40-315 5-315
Rated output voltage(V) 28 18 32.6 22.6
Arc force adjustment(A)
Post-gas time(S) 0-10 0-10
Pre-flow time (S) 0-10 0-10
Pulse current(A) 5-200 5-315
Slope-down time (S)                       0-10 0-10
Pulse frequency (HZ) 0.1-20 0.1-20
Pulse width(%) 10-90 10-90
Duty cycle(%) 60 60
No-load consumption (W) 60 60
Efficiency% 85 85
Power factor 0.93 0.93
Insulation class F F
Weight(KG) 14 26
Diamension(mm) 480x201x295 515*280*435

Metal fabrication workshops

Repair and maintenance

Chemical and process industry

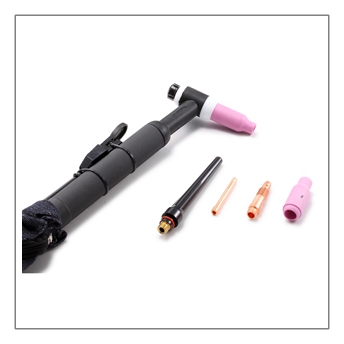

1.WP-26 torch with 4m cable

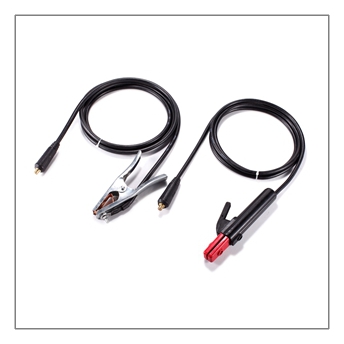

2.300A Earth clamp with 2m cable 25 (Al)

3.1 cable connector(50A)
