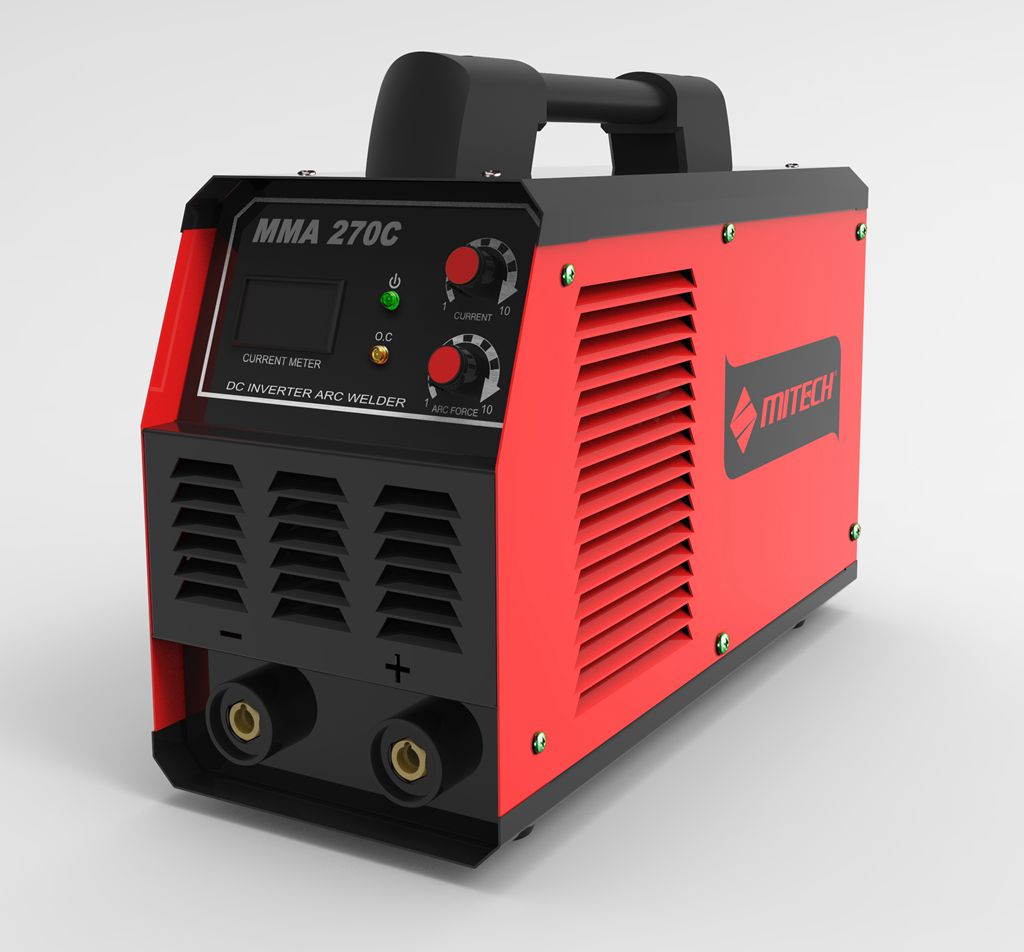

INVERTER DC MMA WELDING MACHINE
【Model 】:MMA270C
【Brief 】:



 Outstanding arc stability and welding performance

 Compact and portable

【Series】:STICK(SMAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Outstanding arc stability and welding performance

Compact and portable

Work with all electrode types (Superior6010 and 7018 Stick welding performance offers wide range of electrode versatility)

Adjustable arc force supports easier arc striking

Compatible with network or generator use

Auto-protection against over voltage and over heat

MODEL MMA250C MMA270C
Input Voltage AC220V+15  1PH AC220V+15  1PH
Rated input power capacity(KVA)          7 8
Input voltage frequency(HZ)                                 50/60 50/60
Rated input current(A)                                             31.8 36.4
No-load voltage(V) 68 68
Output current range(A)                                30-200 30-250
Arc force 0-100 0-100
Rated output volatage(V) 28V 28.8V
Duty cycle(%) 60 60
Insulation class F F
Protection class IP21S IP21S
Diameter of rod 2.5-4.0 2.5-5.0
Power factor 0.93 0.93
Efficiency% 85 85
Weight(KG) 5.5 6
Diamension(mm) 356x153x225 356x153x225



Metal workshops

Agriculture

Repair and maintenance

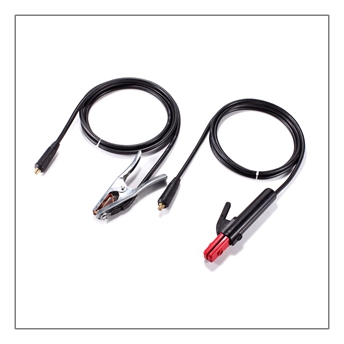

1.Electric holder with 1.5m cable (25mm2)

2.Earth clamp with 1m cable ( 25mm2)
