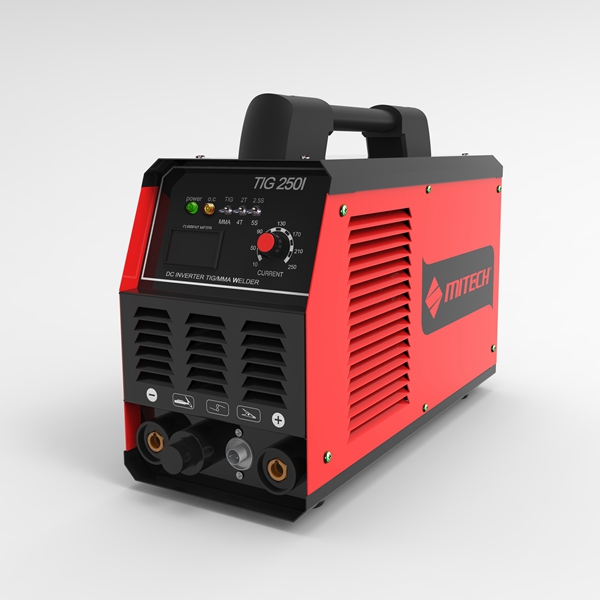

INVERTER DC TIG / MMA WELDING MACHINE
【Model 】:TIG250A
【Brief 】:

Portable with light weight in shop or at job site

Two welding modes, TIG and MMA

【Series】:TIG(GTAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *



Portable with light weight in shop or at job site

Two welding modes, TIG and MMA

Easy arc-striking and stable current, fast dynamic reaction

Outstanding arc stability and welding performance

Compatible with network or generator use

Auto-protection against over voltage and over heat

Model TIG250A
Item MMA TIG
Input Voltage AC220V+15% 1PH
Rated input power capacity(KVA)  7 4.6
Rated input current (A) 31.8 20.9
No-load voltage(V) 56
Output current range(A) 10-200 10-200
Rated output voltage(V) 28 18
Arc force adjustment(A)
Post-gas time(S) 2.5+0.5/5±0.5
Duty cycle(%) 60
No-load consumption (W) 60
Efficiency% 85
Power factor 0.93
Insulation class F
Weight(KG) 10
Diamension(mm) 356x153x225



Metal workshops

Repair and maintenance

Installation and set-up

Thin sheet metal fabrication workshops

Chemical and process industry

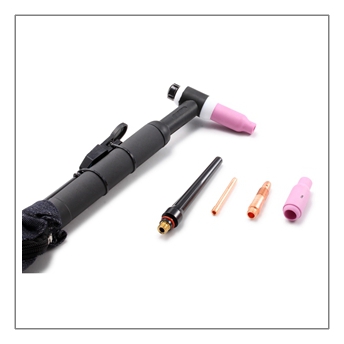

1.WP-26 torch with 4m cable

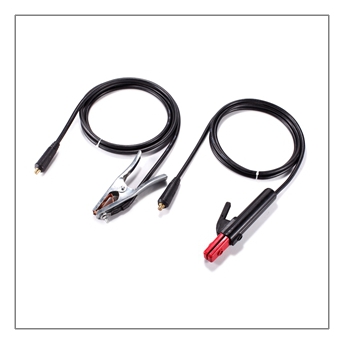

2.300A Earth clamp with 2m cable 16 (Al)

3.1 cable connector(16A)

Next:INVERTER AIR PLASMA CUTTING MACHINE
